F-type glass-lined closed storage tank (vertical)
Main Product Parameters

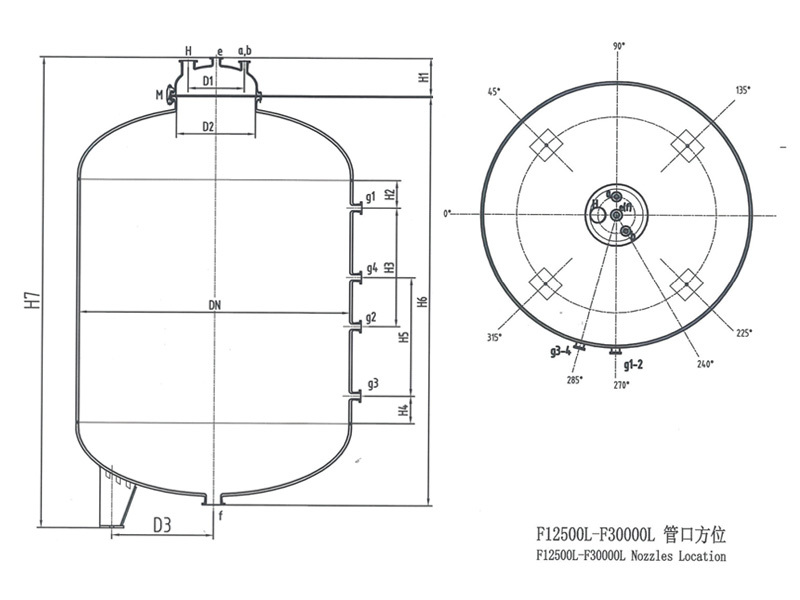

Graphic Details
Product Pictures
Main Product Parameters
| Nominal volume VN(L) |
Main dimensions (mm) | Nominal diameter of the nozzle | |||||||||||||||
| DN | D1 | D2 | D3 | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H | a | b | e | f | g1-4 | |
| 12500 | 2400 | 560 | 800 | 900 | 385 | 200 | 1100 | 200 | 1100 | 3711 | 4318 | 125 | 65 | 65 | 80 | 150 | 65 |
| 16000 | 2400 | 560 | 800 | 900 | 385 | 200 | 1850 | 200 | 1850 | 4502 | 5110 | 125 | 65 | 65 | 80 | 150 | 65 |
| 20000 | 2600 | 560 | 800 | 975 | 385 | 200 | 1850 | 200 | 1850 | 4848 | 5421 | 125 | 65 | 65 | 80 | 150 | 65 |
| 25000 | 2800 | 560 | 800 | 1050 | 385 | 200 | 1850 | 200 | 1850 | 5208 | 5812 | 125 | 65 | 65 | 80 | 150 | 65 |
| 30000 | 3000 | 560 | 800 | 1125 | 385 | 200 | 1850 | 200 | 1850 | 5462 | 6049 | 125 | 65 | 65 | 80 | 150 | 65 |
