F type glass lined closed type (vertical)

Nominal diameter of the nozzle

F type glass lined closed type (vertical)
F type glass lined closed type (vertical)
+
  • F type glass lined closed type (vertical)
  • F type glass lined closed type (vertical)

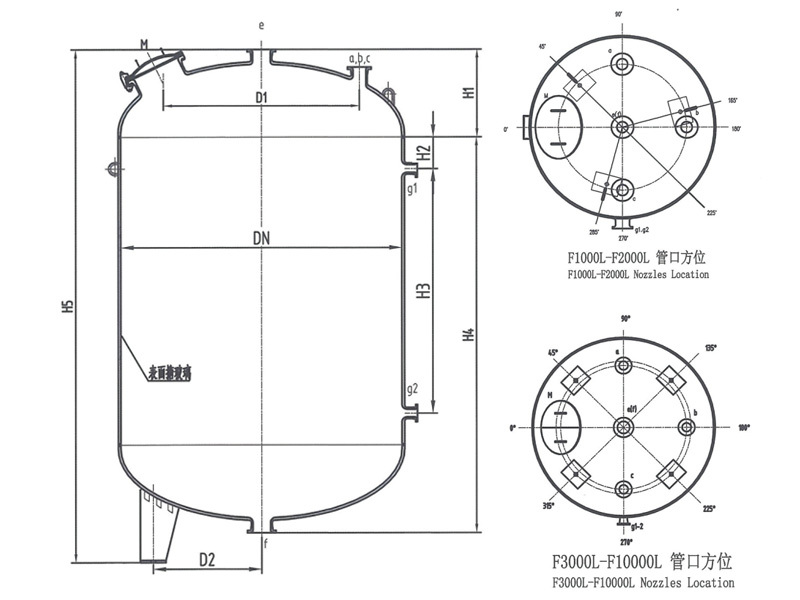

Graphic Details

Product Pictures



Nominal volume
VN(L)		 Main dimensions (mm) Nominal diameter of the nozzle
D D1 D2 H1 H2 H3 H4 H5 H a b c e f g1, g2
1000 1000 700 350 372 120 960 1572 2209 400*300 65 65 65 100 65 65
1500 1200 840 420 415 120 860 1515 2168 400*300 80 80 80 100 100 65
2000 1300 910 420 440 120 1090 1775 2463 400*300 80 80 80 100 100 65
3000 1450 1020 550 481 120 1442 2163 2853 400*300 80 80 80 100 100 65
5000 1600 1120 600 517 150 1900 2717 3449 400*300 80 80 80 125 125 65
6300 1750 1220 675 557 150 1650 2506 3251 400*300 100 100 100 125 125 65
8000 1750 1400 750 636 150 1860 2798 3648 400*300 100 100 100 125 125 65
10000 2200 1540 825 695 150 1900 2890 3778 400*300 150 150 150 150 150 65
