Parameter table			In device	Inner jacket
Total area m3			4
Heat exchange area m2				9.3
Design pressure Mpa			0.4	0.6
Design temperature°C			200	200
Steel plate material			Q235B	Q235B
Reference weight Kg			2880 (excluding transmission equipment)
High voltage test (kv)			20
Reducer - Cycloidal Pinwheel			BLD3
Motor-Asynchronous explosion-proof KW			YB5.5
Rack			JBT5
Blender			Anchor, box: 63~85r/min	Pulp, impeller: 85~130r/m
Use media			Resistant to corrosion by various concentrations of inorganic acids, organic acids, organic solvents and weak alkalis (hydrofluoric acid, media containing fluoride ions, Concentration > 30%, temperature > 180% concentrated phosphoric acid and strong alkali except)
Note: When the operating temperature is less than 0°C or the design pressure is greater than 0.4, it should be specified when ordering
IV port table
symbol	Nominal dimensions	Connecting flange standard			Purpose
M/sl	400x300/125				Manhole (with sight glass)
a	DN100-B	PNO. 6HG/T2105-2006			Backup port
b	DN125-B	PNO. 6HG/T2105-2006			Backup port
c	DN100-B	PNO. 6HG/T2105-2006			Backup port
d	DN125-B	PNO. 6HG/T2105-2006			Backup port
e	DN150-A	PNO. 6HG/T2105-2006			Blender port
f	DN125-A	PNO. 6HG/T2105-2006			Discharge port
T	DN100-B	PNO. 6HG/T2105-2006			Thermometer port
s2	DN125-A	PNO. 6HG/T2105-2006			View mirror port
L1~3	DN50	PL50 (B) -10RF HG/T20592- 2009			Jacket inlet (outlet)
n	DN50	PL50 (B) -10RF HG/T20592- 2009			Jacket inlet (outlet)
g	G1/2"				Exhaust port

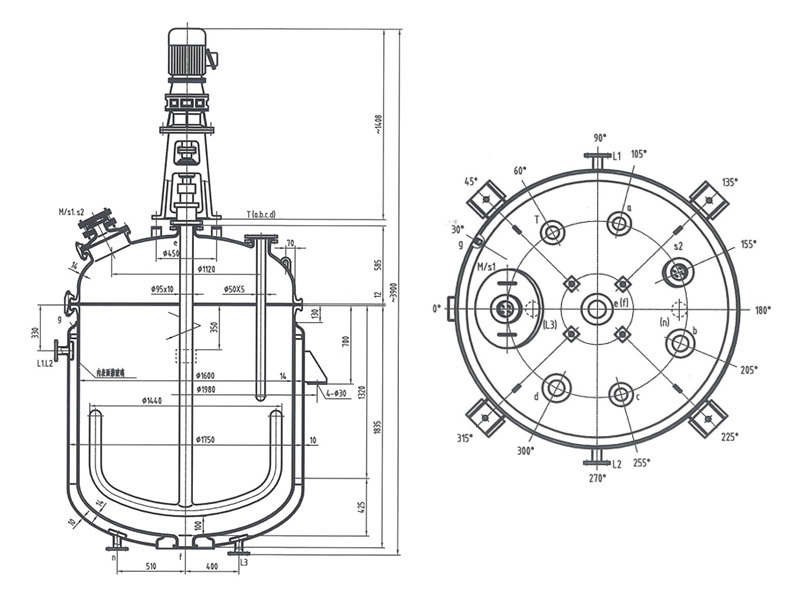

K3000L glass lined reaction tank
