W-type horizontal glass-lined storage tanks
公称容积 VN(L)3000
Graphic Details
Product Pictures

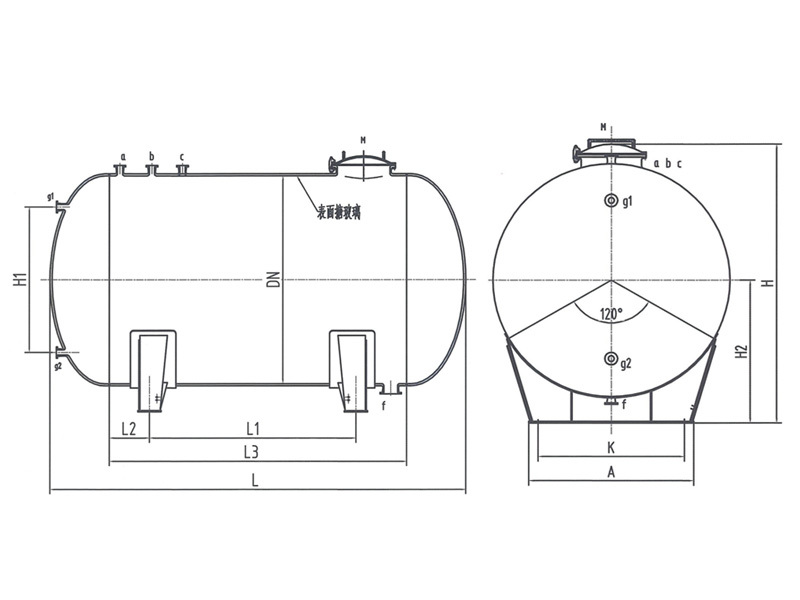

Main Product Parameters
| Nominal volume VN(L) |
Main dimensions (mm) | Nominal diameter of the nozzle | ||||||||||||||
| DN | H1 | H2 | H | L1 | L2 | L3 | L | K | A | M | a | b | c | f | g1-2 | |
| 3000 | 1450 | 1100 | 994 | 1980 | 850 | 300 | 1500 | 2300 | 9o0 | 1060 | 400 | 100 | 65 | 65 | 80 | 65 |
| 5000 | 1600 | 1200 | 1075 | 2150 | 1340 | 400 | 2140 | 3020 | 960 | 1120 | 400 | 100 | 65 | 65 | 80 | 65 |
| 6300 | 1750 | 1300 | 1145 | 2250 | 1350 | 400 | 2200 | 3157 | 1120 | 1200 | 400 | 100 | 80 | 80 | 80 | 65 |
| 8000 | 1900 | 1300 | 1218 | 2450 | 1500 | 450 | 2460 | 3490 | 1200 | 1360 | 400 | 100 | 80 | 80 | 80 | 65 |
| 10000 | 2000 | 1400 | 1270 | 2520 | 1900 | 450 | 2800 | 3930 | 1260 | 1420 | 400 | 100 | 80 | 80 | 100 | 65 |
