F3000L glass lined reaction tank

Parameter table

In device

Inner jacket

Total area m³

3.68

Heat exchange area m²

9.7

Design pressure Mpa

0.4

0.6

Design temperature°C

200

200

Steel plate material

Q235B

Q235B

Reference weight Kg

2710 (excluding transmission equipment)

High voltage test (kv)

20

Reducer - Cycloidal Pinwheel

BLD3

Motor-Asynchronous explosion-proof KW

YB4

Rack

JBT4

Blender

Anchor, box:
63^~85r/min

Pulp, impeller:
85^~130r/m

Use media

    Resistant to corrosion by various concentrations of inorganic acids, organic acids, organic solvents and weak alkalis (hydrofluoric acid, media containing fluoride ions, concentration > 30% , Temperature> Except for 180% concentrated phosphoric acid and strong alkali)

Note: When the operating temperature is less than 0°C or the design pressure is greater than 0.4, it should be specified when ordering

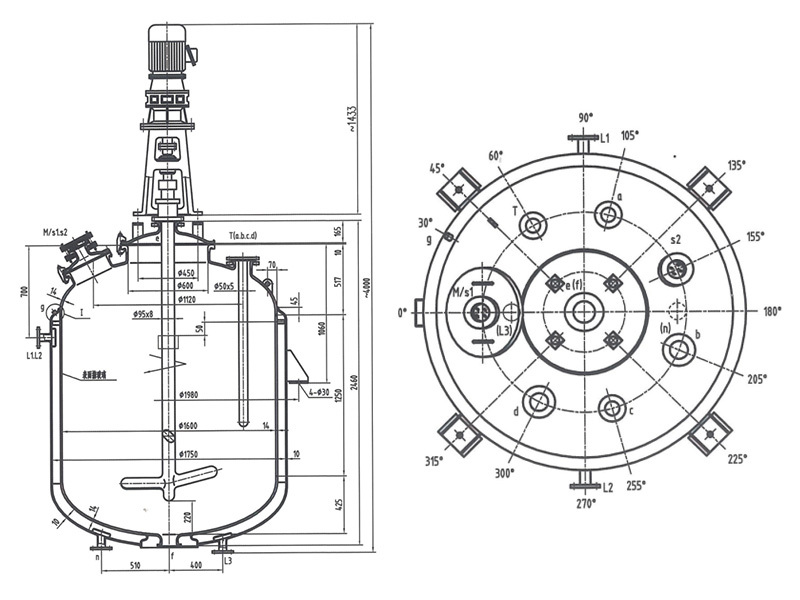

IV nozzle table

symbol

Nominal size

Connecting flange standards

Purpose

M/sl

400x300/125

Manhole (with sight glass)

a

DN100-B

PNO. 6HG/T2105-2006

Backup port

b

DN125-B

PNO. 6HG/T2105-2006

Backup port

c

DN100-B

PNO. 6HG/T2105-2006

Backup port

d

DN125-B

PNO. 6HG/T2105-2006

alignment

e

DN150-A

PNO. 6HG/T2105-2006

align orientation

f

DN125-A

PNO. 6HG/T2105-2006

right side

T

DN100-B

PNO. 6HG/T2105-2006

slope alignment

s2

DN125-A

PNO. 6HG/T2105-2006

Chapter

L1~3

DN50

PL50 (B) -10RF
HG/T20592-2009

show(s)

n

DN50

PL50 (B) -10RF
HG/T20592-2009

show(s)

g

G1/2"

alignment
