K12500L glass lined reaction tank

Parameter

In-device

Jacket

Full capacitym³

14.0

Heat exchange aream²

24.2

Design PressureMpa

0.4

0.6

Design temperature°C

200

200

Steel plate materials

245R

Q235B

Reference weightKg

0(Without transmission equipment)

High voltage test(kv)

20

BF137

BF107

Motors - asynchronous explosion-proof KW

YB15

Rackmount

DJ90

Food mixer

Anchor, Frame:
63^~85r/min

Pulp, impeller:
85^~130r/m

Medium of use

    Resistant to various concentrations of inorganic acids, organic acids, organic solvents and weak bases (except hydrofluoric acid, fluoride ion-containing media, concentrated phosphoric acid with a concentration of > 30%, temperature > 180% and strong bases).

Note: When the working temperature is less than 0°C or the design pressure is more than 0.4, it should be indicated when ordering.

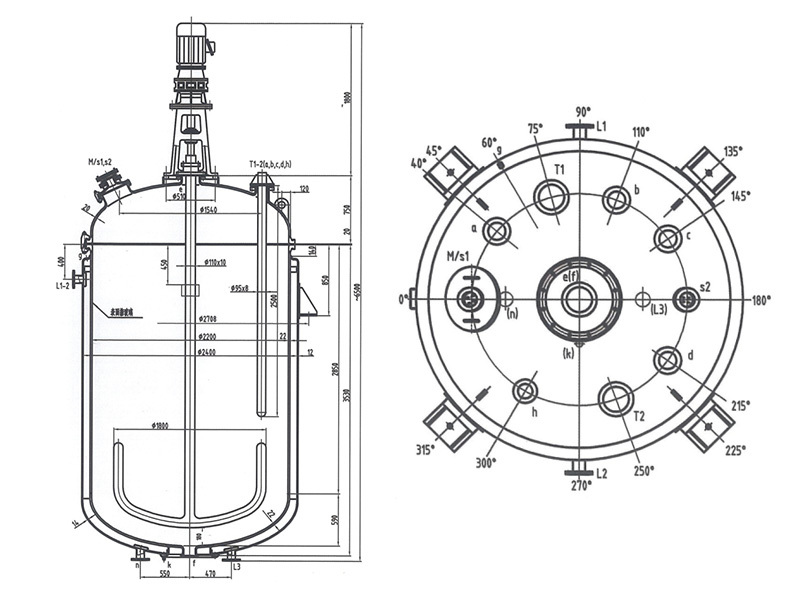

IVorifice gauge

notation

Nominal size

Connection Flange Standard

use

M/sl

400x300/125

Manhole (with sight glass)

a

DN150-B

PNO. 6HG/T2105-2006

alternate port

b

DN150-B

PNO. 6HG/T2105-2006

alternate port

c

DN150-B

PNO. 6HG/T2105-2006

alternate port

d

DN150-B

PNO. 6HG/T2105-2006

alternate port

e

DN200-A

PNO. 6HG/T2105-2006

Stirrer port

f

DN150-A

PNO. 6HG/T2105-2006

feed opening

p

DN125-B

PNO. 6HG/T2105-2006

thermometer port

s2

DN125-A

viewport

T1^~2

DN200-B

PNO. 6HG/T2105-2006

thermometer port

L1^~3

DN80

PL80 (B) -10RF
HG/T20592- 2009

inlet (outlet)

n

DN80

PL80 (B) -10RF
HG/T20592- 2009

inlet (outlet)

g

G3/4"

exhaust port

h

G1/2"

clean out one's mouth
