F10000L glass lined reaction tank

Parameter table

In device

Inner jacket

Total area m³

11.45

Heat exchange area m²

21

Design pressure Mpa

0.4

0.6

Design temperature°C

200

200

Steel plate material

245R

Q235B

Reference weight Kg

7380 (excluding transmission equipment)

High voltage test (kv)

20

RF107

RF97

Motor-Asynchronous explosion-proof KW

YB11

Rack

DJ90

Blender

Anchor, box:
63^~85r/min

Pulp, impeller:
85^~130r/m

Use media

    Resistant to corrosion by various concentrations of inorganic acids, organic acids, organic solvents and weak alkalis (hydrofluoric acid, media containing fluoride ions, concentration > 30% , Temperature> Except for 180% concentrated phosphoric acid and strong alkali)

Note: When the operating temperature is less than 0°C or the design pressure is greater than 0.4, it should be specified when ordering

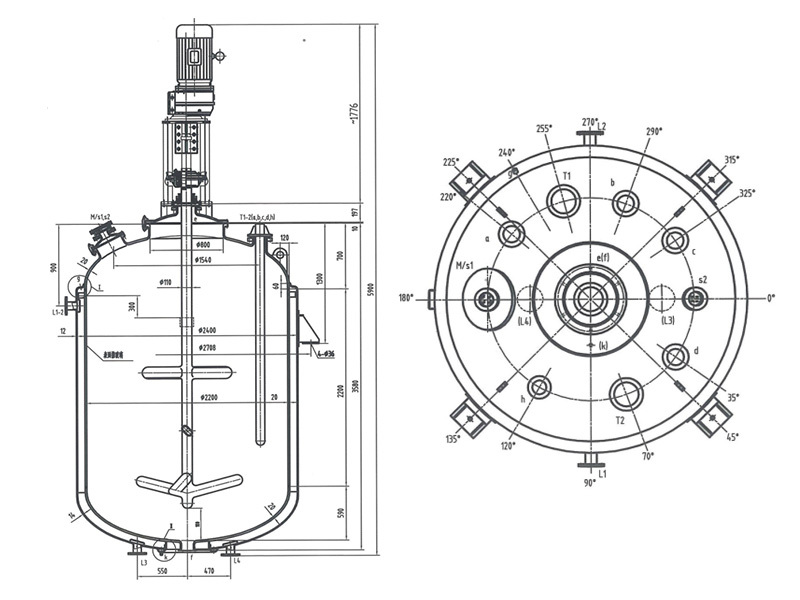

IV nozzle table

symbol

Nominal size

Connecting flange standards

Purpose

M/sl

400x300/125

Manhole (with sight glass)

a

DN150-B

PNO. 6HG/T2105-2006

Backup port

b

DN150-B

PNO. 6HG/T2105-2006

Backup port

c

DN150-B

PNO. 6HG/T2105-2006

Backup port

d

DN150-B

PNO.6HG/T2105-2006

alignment

e

DN200-A

PNO. 6HG/T2105-2006

align orientation

f

DN150-A

PNO. 6HG/T2105-2006

right side

h

DN125-B

PNO. 6HG/T2105-2006

alignment

s2

DN125-A

Chapter

T1^~2

DN200-B

PNO. 6HG/T2105-2006

slope alignment

L1^~4

DN80

PL80 (B) -10RF
HG/T20592-2009

Flower(line)s

g

alignment

k

G1/2"

alignment
