Parameter table			In device	Inner jacket
Total area m³			34.5
Heat exchange area m2			/	44.15
Design pressure Mpa			0.6	0.6
Design temperature°C			200	200
Steel plate material			245R	Q235B
Reference weight Kg			19900 (excluding transmission equipment)
High voltage test (kv)			20
Reducer-helical gear			RF137	RF147
Motor-Asynchronous explosion-proof KW			YB37
Rack			DJ130
Blender			/	Pulp, impeller: 85~130r/m
Use media			Resistant to corrosion by various concentrations of inorganic acids, organic acids, organic solvents and weak alkalis (hydrofluoric acid, media containing fluoride ions, Concentration > 30%, temperature > 180% concentrated phosphoric acid and strong alkali except)
Note: When the operating temperature is less than 0°C or the design pressure is greater than 0.4, it should be specified when ordering

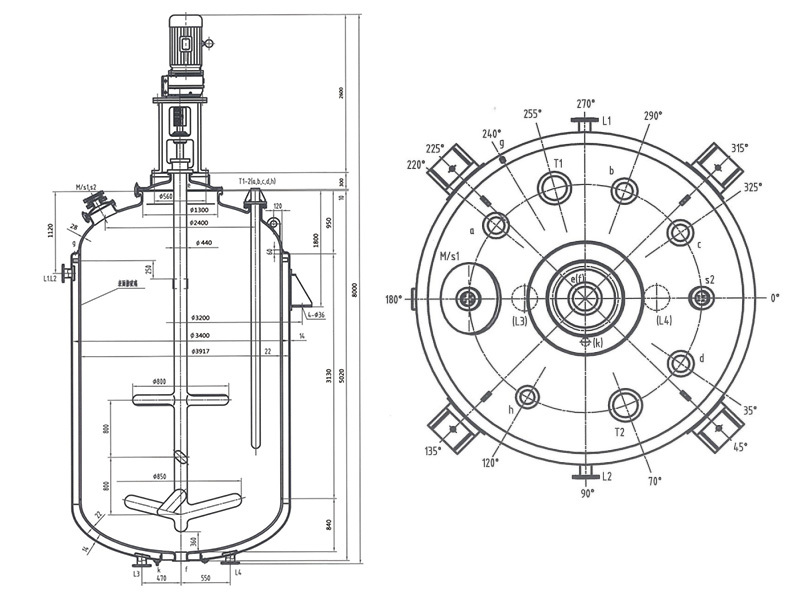

IV port table
symbol	Nominal dimensions	Connecting flange standard			Purpose
M/sl	DN450/125	/			Manhole (with sight glass)
a	DN200-B	PNO. 6HG/T2105-2011			Backup port
b	DN200-B	PNO. 6HG/T2105-2011			Backup port
c	DN200-B	PNO. 6HG/T2105-2011			Backup port
d	DN200-B	PNO. 6HG/T2105-2011			Backup port
e	DN200-A	PNO. 6HG/T2105-2011			Blender port
f	DB150-A	PNO. 6HG/T2105-2011			Discharge port
h	DN125-B	PNO. 6HG/T2105-2011			Backup port
s2	DN125-A	PNO. 6HG/T2105-2012			View mirror port
T1~2	DN200-B	PNO. 6HG/T2105-2011			Thermometer port
L1~4	DN100	Steam inlet (outlet)
g	G3/4"	/			Exhaust port
h	G1/2"	/			Put the mouth clean

F30000L glass lined reaction tank
