Nominal volume VN(L)	Actual volume VN(L)	Actual volume m3	Main dimensions (mm)								Nominal diameter of the nozzle								Tank card specifications/quantity
Nominal volume VN(L)	Actual volume VN(L)	Actual volume m3	D	D1	D2	D3	H	H1	H2	H3	a	M	T	s1s2	b,c	f	n1-4	g	Tank card specifications/quantity
K300	369	1.75	800	900	1028	560	1280	870	350	390	150	125	70	80	80	80	25	G1/2"	BM12/40
K500	590	2.27	900	1000	1130	630	1510	1070	400	415	200	150	80	100	80	80	32	G1/2"	BM12/36
K1000	1250	4.54	1200	1300	1468	840	1820	1270	500	510	300	200	80	100	80	100	32	G1/2"	BM12/52
K1500	1720	5.00	1300	1450	1622	910	2040	1470	500	300	200	80	100	80	100	40	G1/2"	BM12/56
K2000	2280	6.42	1600	1750	1962	1120	1990	1330	600	630	400	200	100	125	125	125	40	G1/2"	BM12/60
K3000	3380	8.67	1600	1750	1962	1120	2480	1810	600	630	400	200	100	125	125	125	40	G1/2"	BM12/60

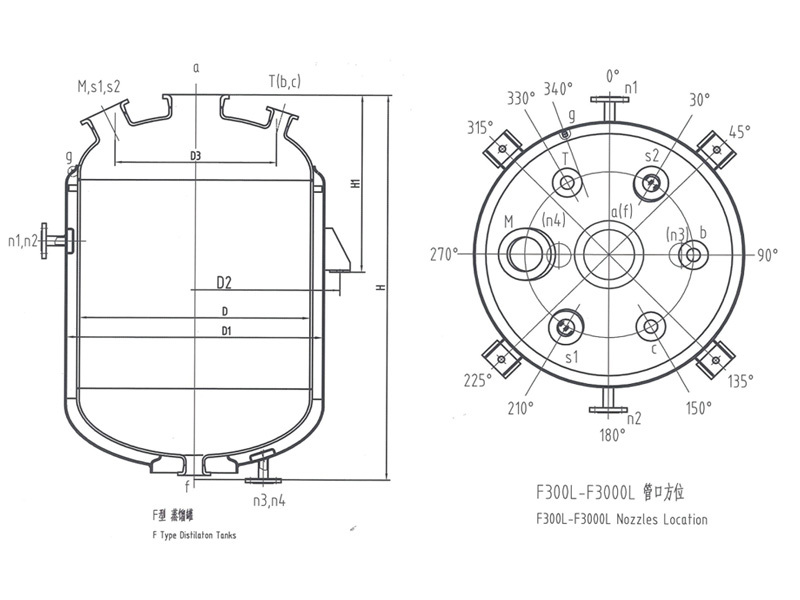

F type glass lined distillation tank
